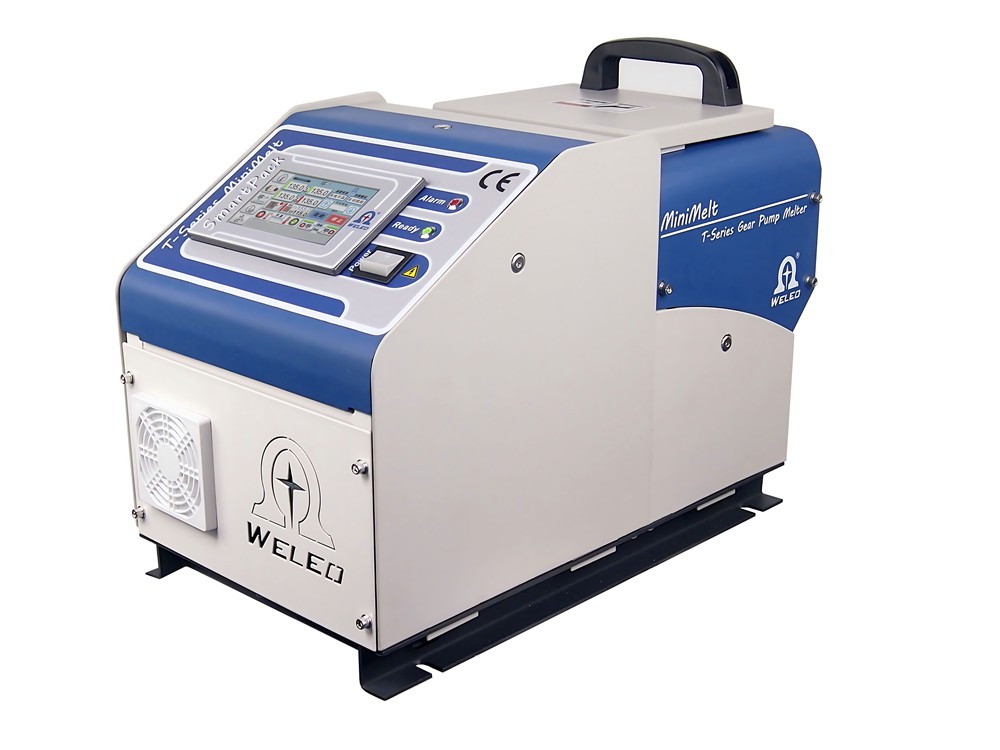

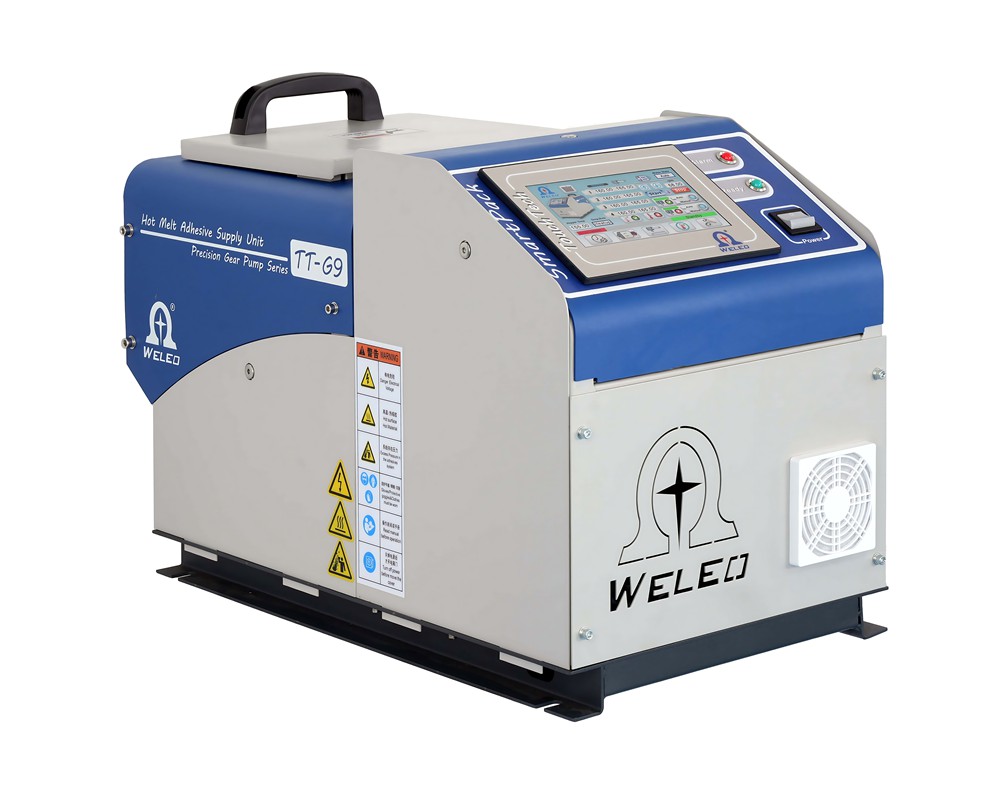

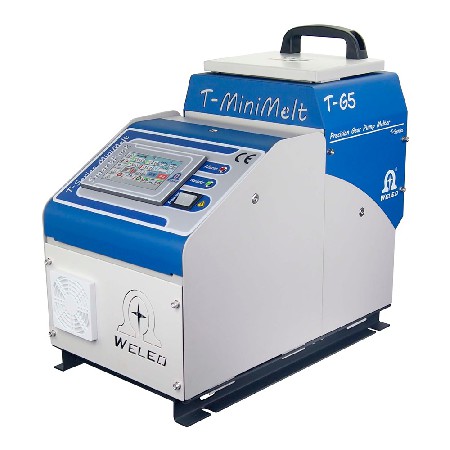

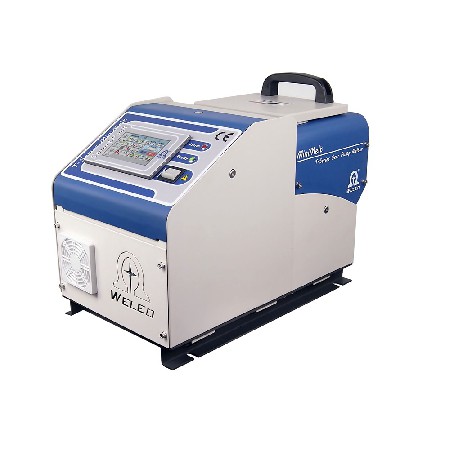

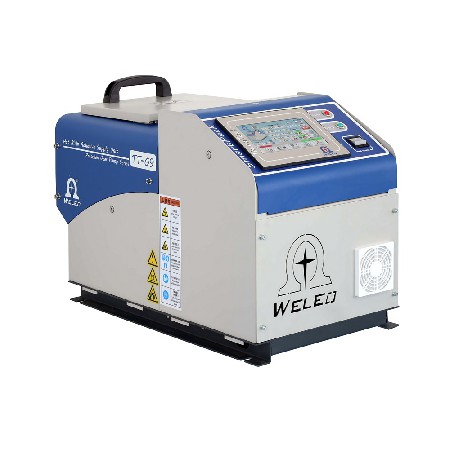

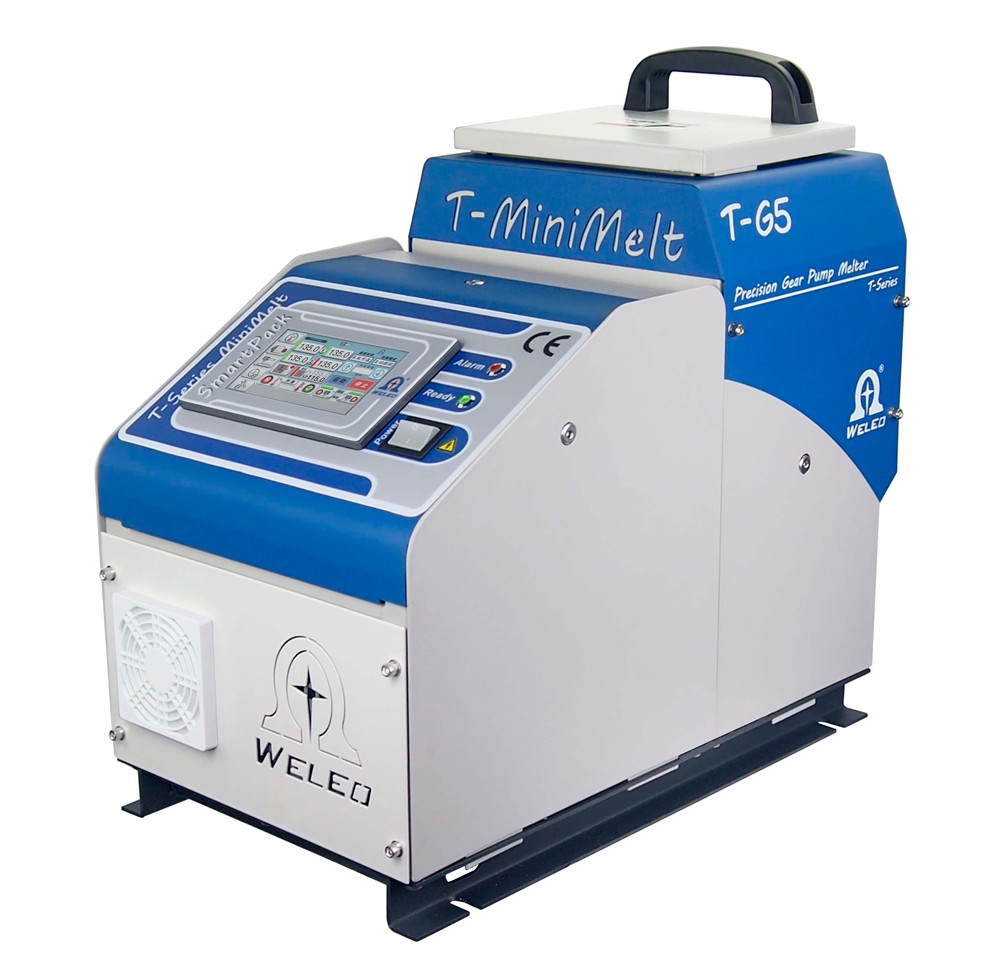

TT Low Volume Precision Gear Pump Adhesives Melter
2025-10-22 32
The TT series hot melt glue machine is a compact yet powerful tool for modern automated lines. Available in 3kg, 5kg, and 9kg capacities, it suits different production needs. It can be fitted with 2 to 4 glue hoses for versatile adhesive tasks.
Its key feature is a precise gear pump system that ensures stable glue flow and allows for single or double-layer output, boosting accuracy and flexibility. With real-time glue level monitoring, it prevents disruptions and ensures smooth operations.
The melting tank has a Teflon coating for durability and a double-layer insulation for temperature stability, resulting in better bonding and efficiency.
In short, the TT series is a perfect match for automated lines, enhancing production quality and efficiency.
Overview:
3/5/9kg Hopper capacity
Die-Cast hopper increase heat efficiency with Teflon coating
The melting tank with an insulation jacket saving energy
Removable access both side of covers expose easy maintenance
Gear pump 0.16 cc to 5.4cc single/dual pump
Precision gear pump adhesive pressure up tp 1000psi
Melter built-in primary filter and high efficiency filter
Maximum connect with 4hose/4head applicators
TouchTech Contorl
7" HMI high resolution color touchpad
System status message display immediate
Temperature sensor compatible with Pt100, Ni120, NTC or FE-KO
Melter Key to production line connection
7 days schedule melter on/off
Temperature standby mode on/off
Glue dispensing pattern conrtrol with high speed distance compensate
Adhesvies low level sensor with alarm (optional)
